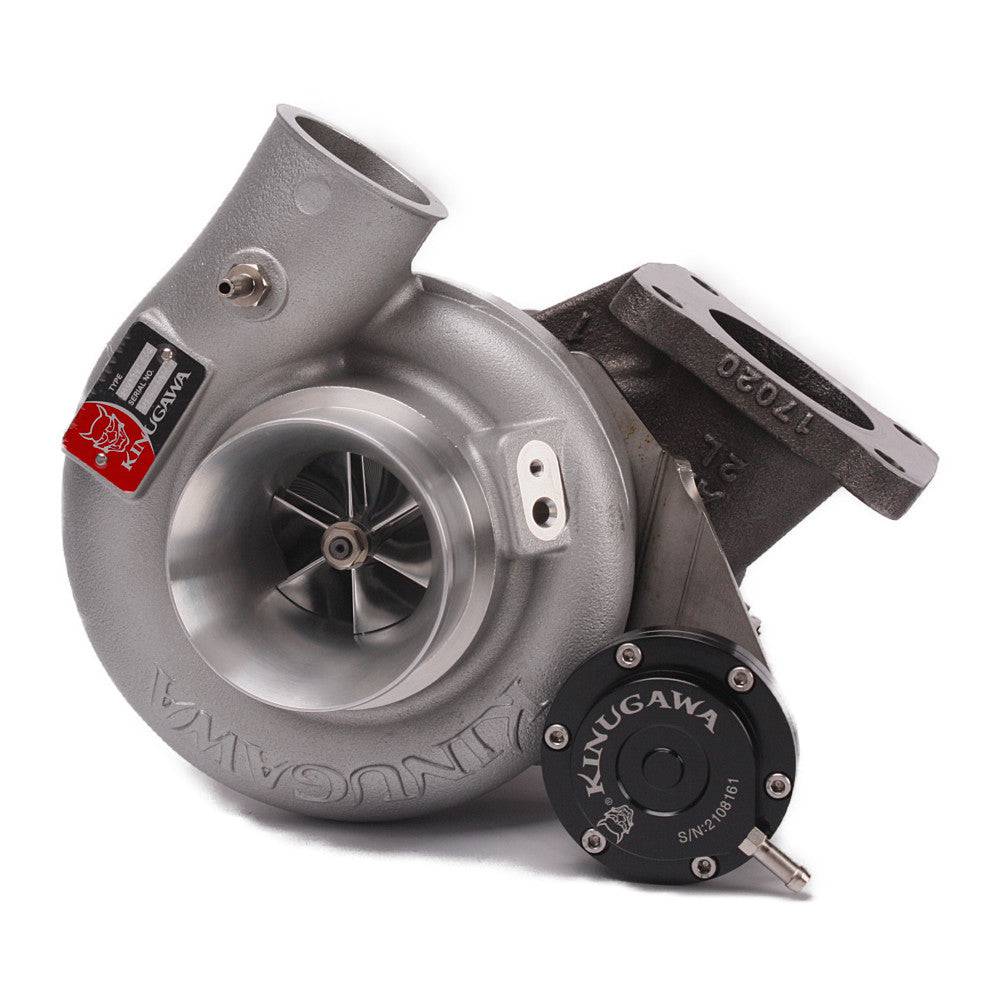

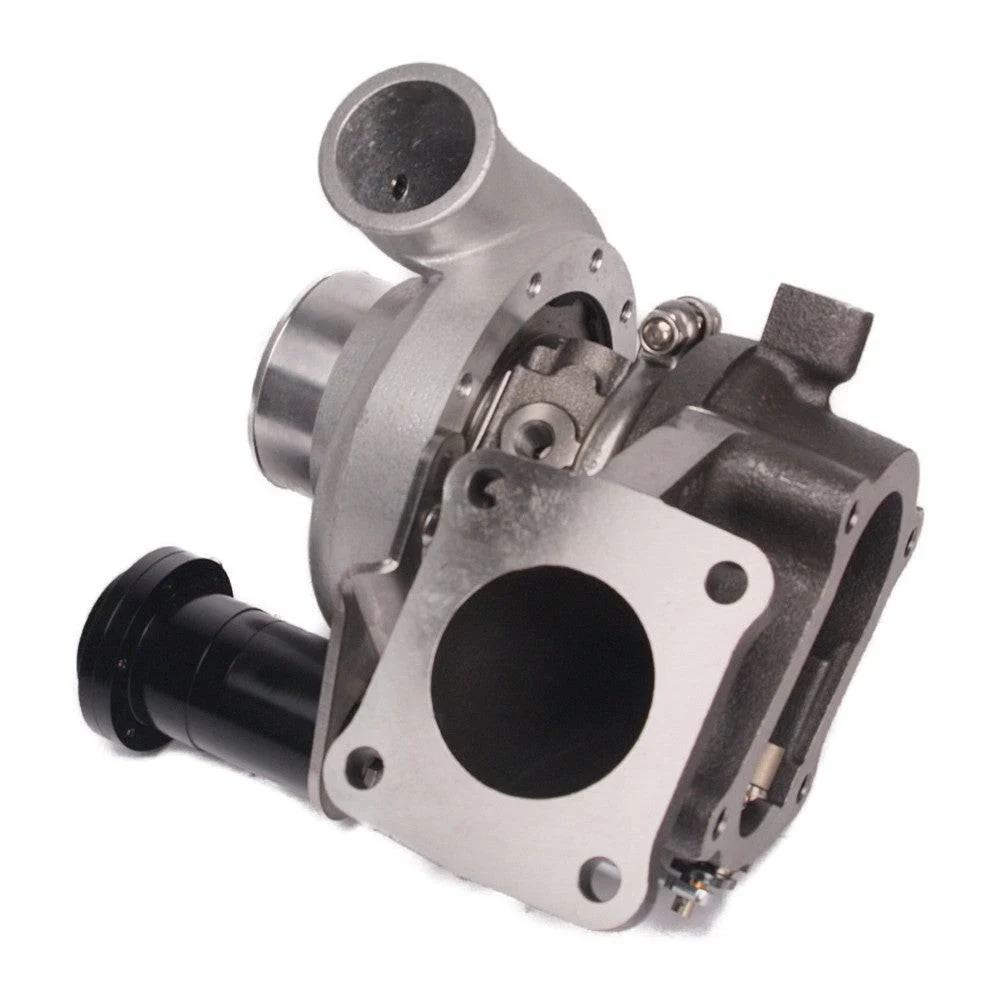

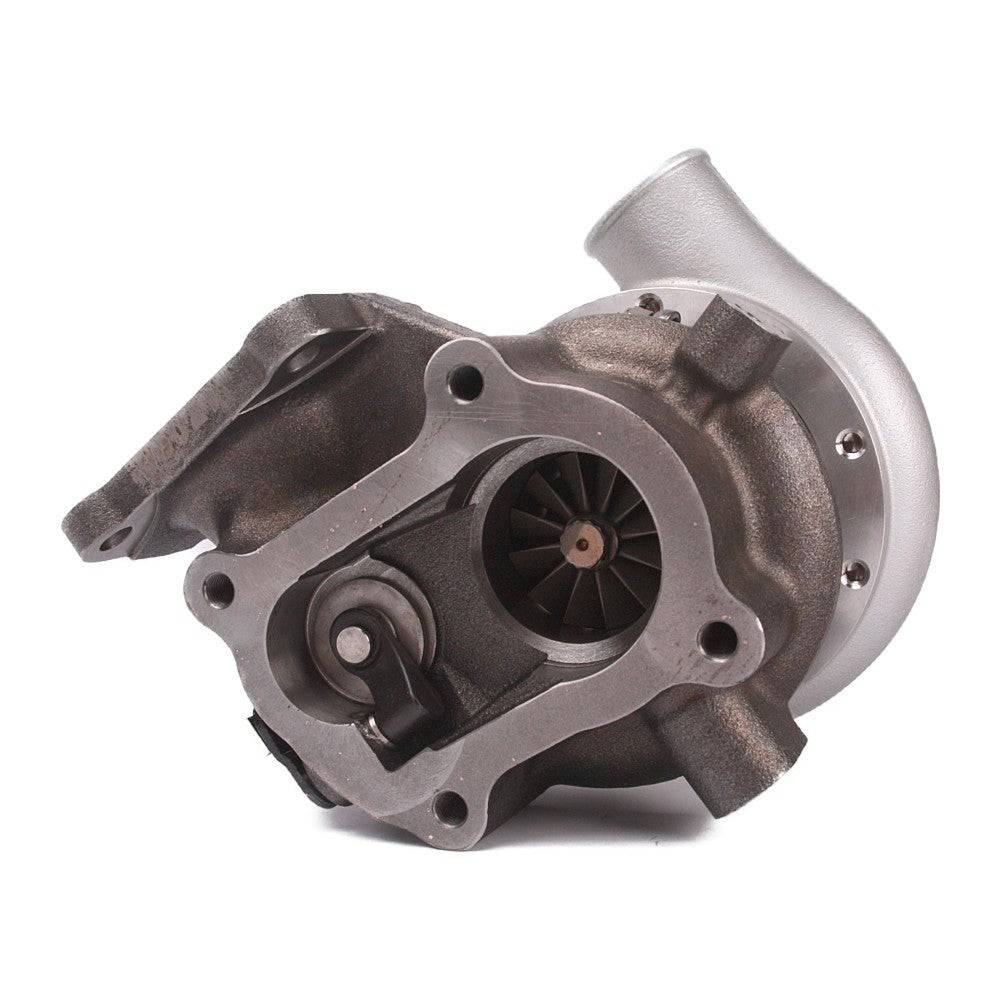

Kinugawa Turbo Ball Bearing 3" TD05H-16G 7cm for Toyota Land Cruiser 1HZ 80 100 105
Description
Kinugawa STS Advanced Ball Bearing Tech for Toyota 1HZ diesel td05h-16g spec turbocharger with 3" anti-surge cover and 7cm Bolt-on turbine housing provides ultimate spool time than ever. The turbocharger is equipped with CT26 base turbine housing (inlet and outlet type), the same as the factory turbocharged 1HDT Land Cruiser engine. If you have an HZJ80 series, a factory 3″ exhaust system will fit straight on; the turbocharger is the same bolt pattern as the factory turbocharger and is in the same factory location. The turbo comes with a laser-cut flange plate that converts a 1HZ stock manifold to suit the Toyota CT26 flange turbo. This convenient kit hopefully saves you from buying and installing a new manifold.
Application
- Fit Toyota land cruiser 75/78/79/80/100 series TD05H-16KX with 7cm CT26 turbine housing
- Fit Toyota land cruiser 75/78/79/80/100 series TD05H-16KX with 7cm CT26 turbine housing
CHRA Size
- TD05H-16G
Wheels Spec
- Compactor wheel: 48.5 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm ( Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
- Inlet: 3"
- Outlet: 2"
Turbines Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x Turbo Flange Adapter Kit for Toyota Land Cruiser 75 79 80 100 105 (#412-07001-002~)
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag↗
Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
