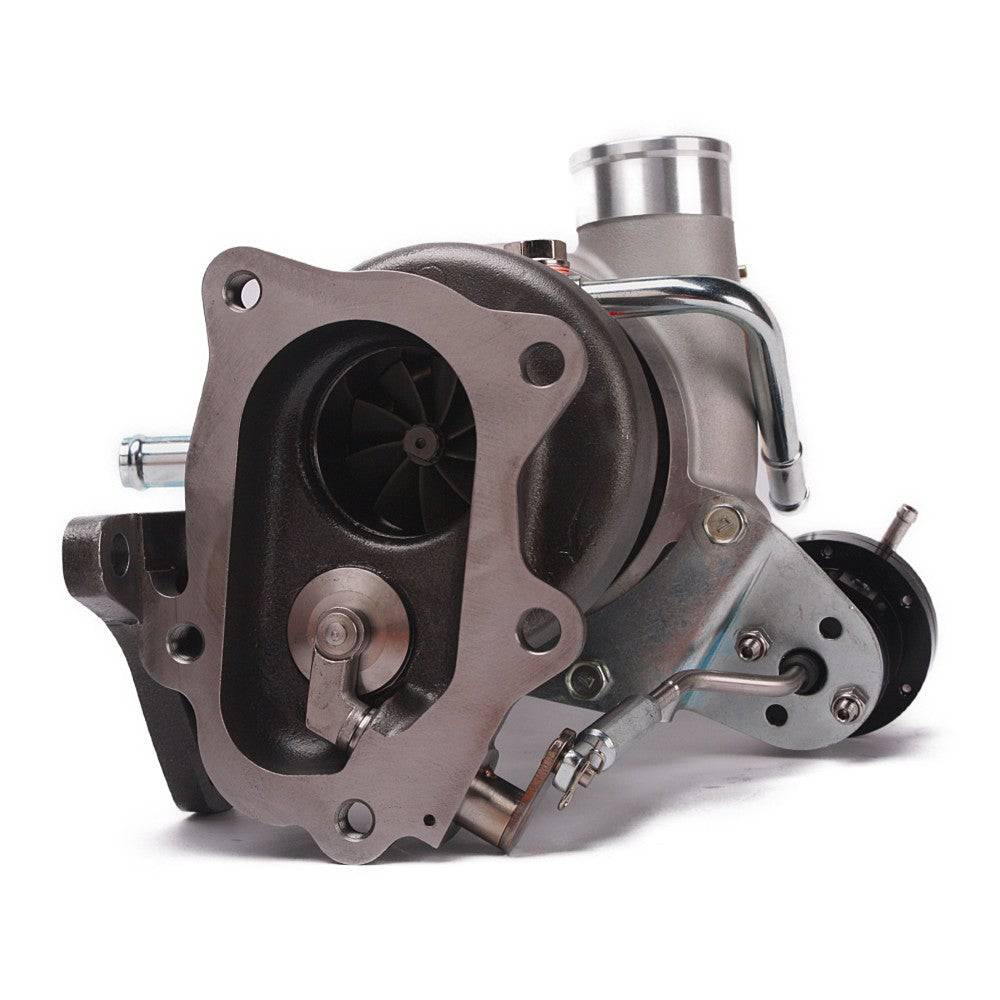

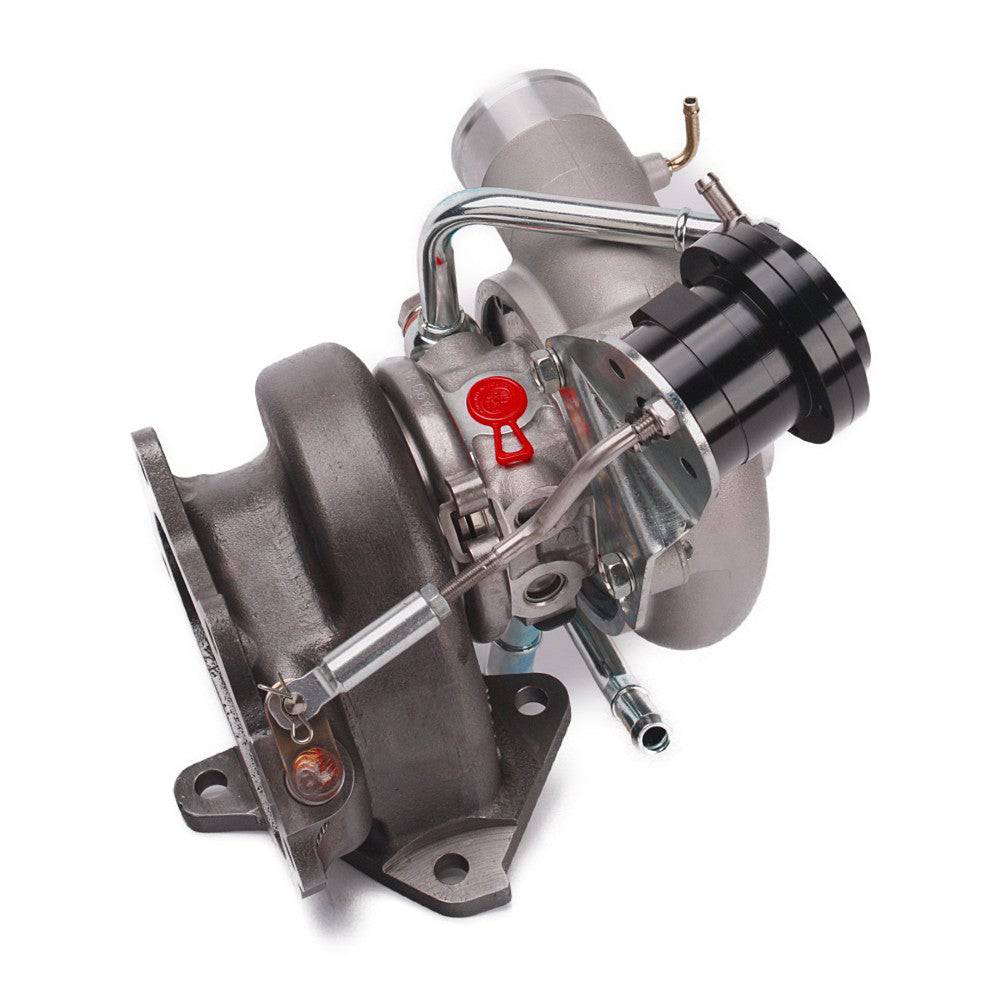

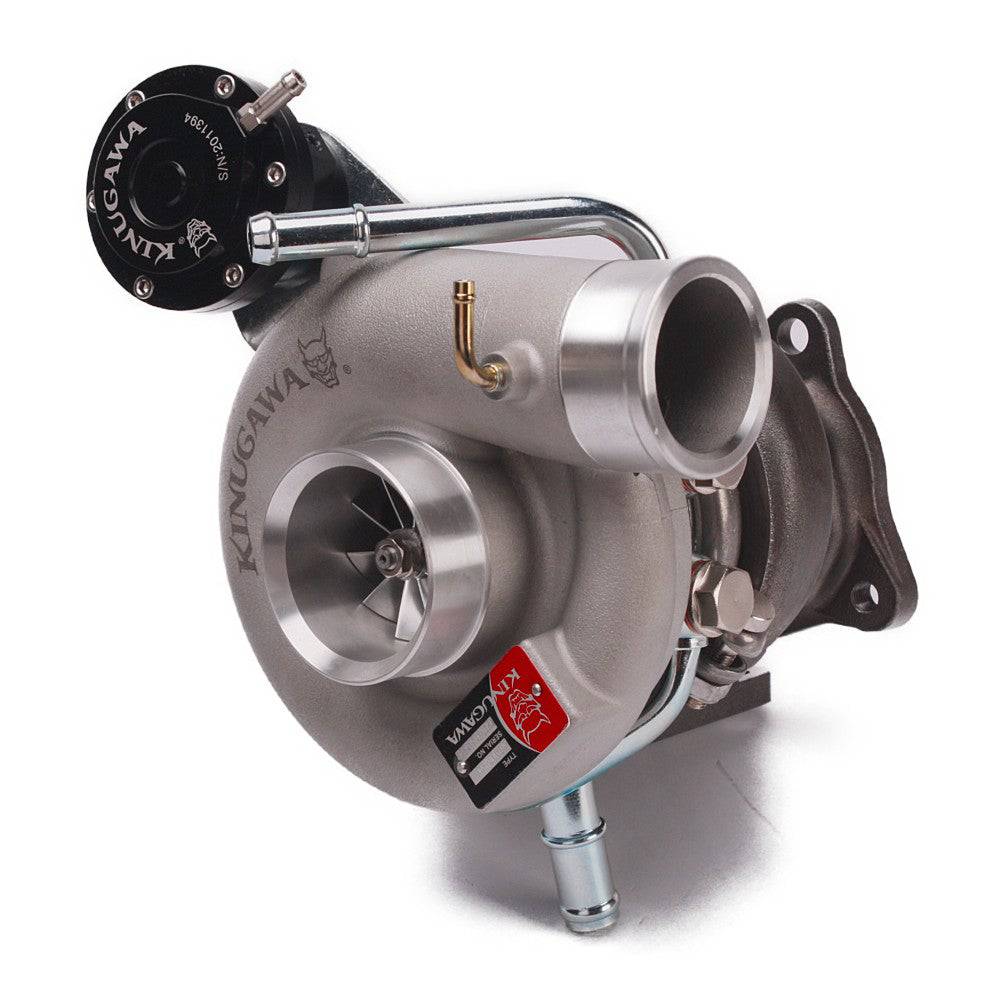

Kinugawa Turbo Ball Bearing TD05 TD06 GTX2863R GTX2867R GTX3071R for SUBARU WRX STI 2004-2020
Application
- For Subaru EJ20 EJ25 IMPREZA GC8 / GDA / GDB / GRB / GRF single-scroll turbo.
(inc. 2002-2007 WRX / 2004+ STI)
- Replacement of items in the warehouse.
- For the Subaru EJ20 & EJ25 engine.
- Bolt for replacement of all WRX / STI td04l, IHI RHF55 RHF5HB VF22, VF23, VF24, VF28, VF29, VF30, VF34, VF35…, and MHI TD05/TD06 turbocharger with Stock 2.4" Intake turbo.
- 2004-2020 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
Here's an airflow comparison between the Garrett GTX2863R, GTX2867R, and GTX3071R turbochargers based on the provided search results:
GTX Turbocharger Airflow Comparison:
| GTX2863R | GTX2867R | GTX3071R | |
|---|---|---|---|
| Compressor Wheel Size | 63.4mm exducer | 67.4mm exducer | 71.4mm exducer |
| Max Flow Rate | ~43.0 lb/min | 49 lb/min | 60 lb/min |
| HP Potential | 420-425 HP | 475 HP | 480 HP |
- Compressor wheel 3 Options
GTX 2863: 47/63.4 mm 11+0 Blades
GTX 2867: 49.7/67.4 mm 11+0 Blades
GTX 3071: 54/71.4 mm 11+0 Blades
- Turbine wheel 3 Options:
TD05H: 56 / 49 mm 9 Blades STS
TD06SL2: 61 / 54 mm 9 Blades STS
TD06H: 67.2 / 58.8 mm 9 Blades STS
Compressor Housing (AR 57)
- Compressor inlet/outlet: 2.4"/2.0"
Turbine Housing Hi-Ni Thermal Resistant
- 3 options 7cm ar.49 / 8cm ar.57 / 10cm ar.73
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar is the default.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
-1 x Oil supply set
-1 x water supply and return pipe set
-1 x Return Oil Pipeline
-1 x turbine inlet and outlet gasket
-5 x Stud And Nut Set
-1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
